IP DSLAM
Our IPDSLAM is a carrier class DSL access solution tailored to meet customer requirements for high-speed remote access and subscriber aggregation. The IP DSLAM directly and costeffectively interfaces with the evolving IP network in order to deliver high capacity traffic aggregation and robust, “always on” services. In an increasingly competitive environment, the IP DSLAM affords simple and reliable delivery of high demand applications.



UNITED COMMUNICATIONS IP DSLAM


PRODUCT TECHNICAL DESCRIPTION

The IPDSLAM terminates ATM cells from existing, compatible customer premise equipment and converts them into IP traffic. By directly connecting to an IP router or switch, the IP DSLAM eliminates the bandwidth overhead and provisioning complexities associated with traditional ATM DSLAMs. Decreased dependence on ATM results in the elimination of additional ATM-related elements including Broadband Remote Access Servers (BRAS), greater throughput and simplified management. By utilizing IP instead of ATM in the core, carriers realize significant operational and capital savings. Comprehensive management and operation support is delivered
via United Communications' SNMP-based Network Management Software (NMS).

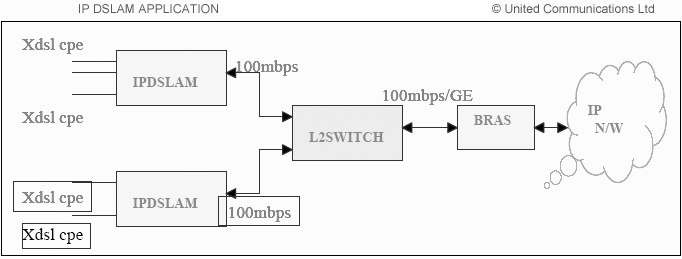

Network Management Software (NMS) is a centralized, client-server based network management diagnostics tool that supports batch configuration mechanisms, which can significantly simplify the provisioning task and minimize provisioning errors. Traffic from multiple IPDSLAM can be aggregated and passed on to BRAS for layer 3 functionality.

CLICK HERE FOR A BIGGER IMAGE

IP DSLAM Product Specifications

System capacity 24 lines
  Two 10/100 Base T

Features supported
  RFC2684 multi-protocol encapsulation over AAL5
  Spanning tree algorithm
  Statistics monitoring on Ethernet and on bridge interface
  IGMP snooping
  VLAN Tagging
  Support for RFC 2684
  Supports the encapsulation of bridged Ethernet PDU over AAL5 using RFC 2684.
  Both VC multiplexing and/or LLC multiplexing supported.
  Supports transparent bridging, per IEEE 802.1d, between the WAN port and any ADSL ports configured for RFC 1483 bridging encapsulation

ATM Features
ATM Forum TM 4.1 QoS
Per VC Shaping/Policing
EPD/PPD Congestion Management
ATM OAM I.610 F4/F5 Fault Management per I.610
ATM Cell Multicast Support
EDTF Algorithm for CBR/rt-VBR Traffic
WRR for UBR/ nrt_VBR Traffic
ATM Statistics: Per VC, Per Port
Header Translation & Cell Switching
Required MIBs

Management features
In-band IP over AAL5
SNMP V 2 agent
RS232 CLI
Telnet
Remote/local service provisioning, system management and monitoring with SNMP
or a CLI (command line interface)

Packet Features
Multi-Protocol Over ATM RFC 2684 (1483)
TCP/IP Protocol
IEEE 802.1D MAC Bridging
IEEE 802.1P Priority Tagging
IEEE 802.1Q VLAN Bridging
IEEE 802.3ad Ethernet Trunking
IEEE 802.1d Spanning Tree
Generic VLAN Registration Protocol (GVRP)
Generic Multicast Registration Protocol (GMRP)
Per box subtending
WFQ & RED/WRED Congestion Control
BOOTP, DHCP, TFTP and Telnet
IGMP Snooping for IP Multicast

Input Power DC-42V to -56V



SUBSCRIBER INTERFACE

Downstream Bit Rate 32 – 8192 Kbps
Upstream Bit Rate 32 – 1024 Kbps
Impedance 135 Ohms
Power consumption < 2.5 watts per port
Data rate provision Fixed or rate adaptive
Maximum Line loss 60 dB @ 300 kHz
Performance BER < 10-7 with 6dB margin ITU-T G.991.2 test loops
Standard Compliance ITU-T G.991.2
Line Protection As per ITU-T K-20



Get in touch with us if you require more information about IP DSLAM
